Format Menu

Align Lefts: Aligns the left edges of two or more selected objects with the left edge of the master selected object.

Align Centers: Aligns the centers of two or more selected objects with the center of the master selected object.

Align Rights: Aligns the right edges of two or more selected objects with the right edge of the master selected object.

Align Tops: Aligns the top edges of two or more selected objects with the top edge of the master selected object.

Align Middles: Aligns the middles of two or more selected objects with the middle of the master selected object.

Align Bottoms: Aligns the bottom edges of two or more selected objects with the bottom edge of the master selected object.

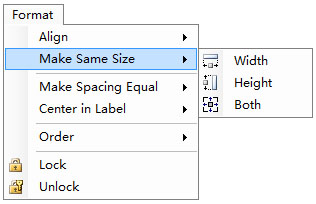

Make Same Width: Makes all the selected object the same width as the master selected object.

Make Same Height: Makes all the selected object the same height as the master selected object.

Make Same Size: Makes all the selected object the same size as the master selected object.


Make Horizontal Spacing Equal: Objects are rearranged so that the distance between them is constant in the horizontal direction. This option requires that a minimum of three objects be selected.

Make Vertical Spacing Equal: Objects are rearranged so that the distance between them is constant in the vertical direction. This option requires that a minimum of three objects be selected.

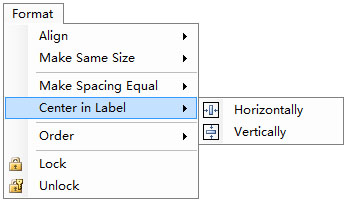

Center Horizontally: Aligns the selected object(s) relative to the center of the label.

Center Vertically: Aligns the selected object(s) relative to the middle of the label.


Bring Forward: Moves selected objects to the front by one position. Selecting this command makes sense only if several elements overlap each other.

Send Backward: Moves objects to the back by one position. This command makes sense only if several elements overlap each other.

Bring to Front: Moves objects to the top. This action makes sense only if several elements overlap each other.

Send to Back: Moves objects to the back. This action makes sense only if several elements overlap each other.

Lock: Locks the selected objects so that they cannot be moved, resized, etc.

Unlock: Unlocks the selected objects so that they can again be moved, resized, etc.
